2376) Shinkansen

Gist

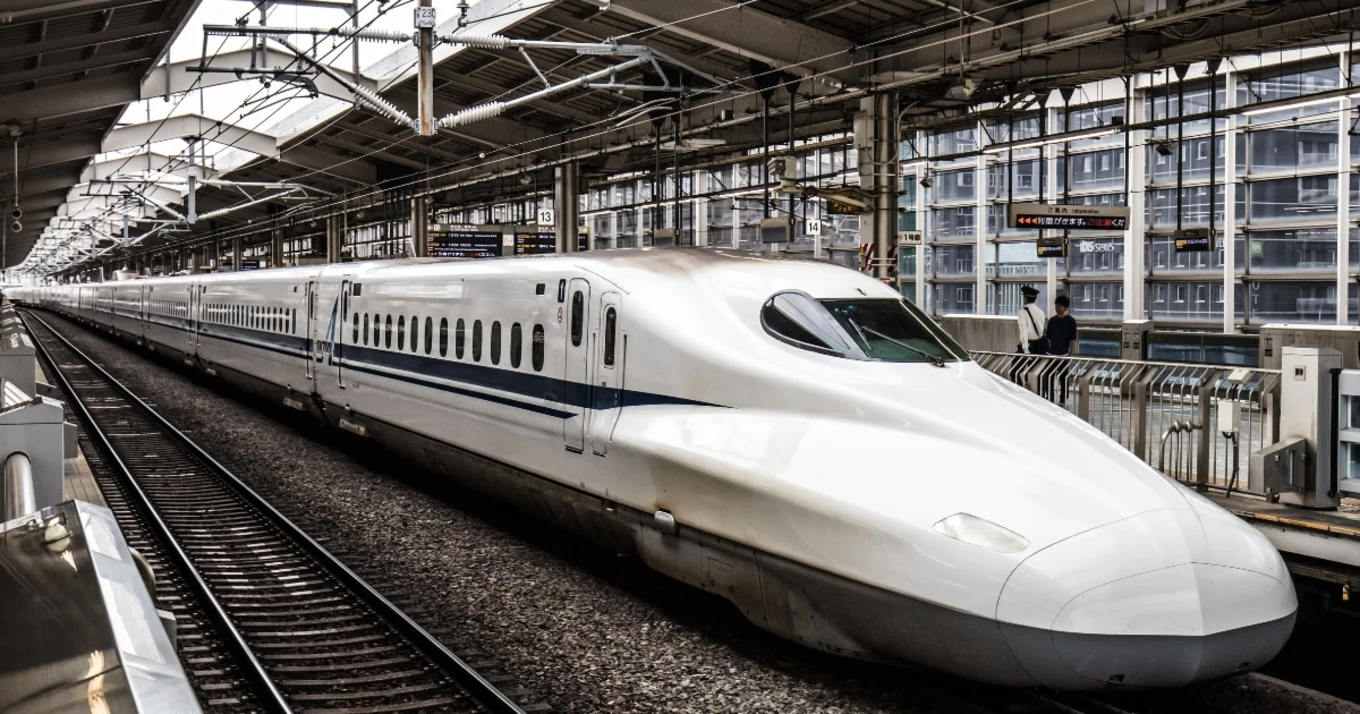

The Shinkansen, or "Bullet Train," is Japan's high-speed railway network, known for its speed, reliability, and advanced technology. Opened in 1964 to connect distant regions and facilitate economic growth, the Shinkansen network allows passengers to travel efficiently between major cities like Tokyo, Osaka, and Fukuoka. The trains are characterized by their aerodynamic, bullet-shaped noses and operate on dedicated tracks, with a central management system ensuring high levels of safety.

The Shinkansen, or "Bullet Train," is Japan's high-speed railway network, known for its speed, reliability, and advanced technology. Opened in 1964 to connect distant regions and facilitate economic growth, the Shinkansen network allows passengers to travel efficiently between major cities like Tokyo, Osaka, and Fukuoka. The trains are characterized by their aerodynamic, bullet-shaped noses and operate on dedicated tracks, with a central management system ensuring high levels of safety.

Summary

The Shinkansen, colloquially known in English as the bullet train, is a network of high-speed railway lines in Japan. It was initially built to connect distant Japanese regions with Tokyo, the capital, to aid economic growth and development. Beyond long-distance travel, some sections around the largest metropolitan areas are used as a commuter rail network. It is owned by the Japan Railway Construction, Transport and Technology Agency and operated by five Japan Railways Group companies.

Starting with the Tokaido Shinkansen (515.4 km; 320.3 mi) in 1964, the network has expanded to consist of 2,951.3 km (1,833.9 mi) of lines with maximum speeds of 260–320 km/h (160–200 mph), 283.5 km (176.2 mi) of Mini-shinkansen lines with a maximum speed of 130 km/h (80 mph), and 10.3 km (6.4 mi) of spur lines with Shinkansen services. The network links most major cities on the islands of Honshu and Kyushu, and connects to Hakodate on the northern island of Hokkaido. An extension to Sapporo is under construction and was initially scheduled to open by fiscal year 2030, but in December 2024, it was delayed until the end of FY2038. The maximum operating speed is 320 km/h (200 mph) (on a 387.5 km (241 mi) section of the Tōhoku Shinkansen). Test runs have reached 443 km/h (275 mph) for conventional rail in 1996, and up to a world record 603 km/h (375 mph) for SCMaglev trains in April 2015.

The original Tokaido Shinkansen, connecting Tokyo, Nagoya, and Osaka —three of Japan's largest cities — is one of the world's busiest high-speed rail lines. In the one-year period preceding March 2017, it carried 159 million passengers, and since its opening more than six decades ago, it has transported more than 6.4 billion total passengers. At peak times, the line carries up to 16 trains per hour in each direction with 16 cars each (1,323-seat capacity and occasionally additional standing passengers) with a minimum headway of three minutes between trains.

The Shinkansen network of Japan had the highest annual passenger ridership (a maximum of 353 million in 2007) of any high-speed rail network until 2011, when the Chinese high-speed railway network surpassed it at 370 million passengers annually.

Details

Shinkansen, pioneer high-speed passenger rail system of Japan, with lines on the islands of Honshu, Kyushu, and Hokkaido. It was originally built and operated by the government-owned Japanese National Railways and has been part of the private Japan Railways Group since 1987.

The first section of the original line, a 320-mile (515-km) stretch between Tokyo and Ōsaka, was opened in 1964. Known as the New Tōkaidō Line, it generally follows and is named for the historic and celebrated Tōkaidō (“Eastern Sea Road”) highway that was used especially during the Edo (Tokugawa) period (1603–1867). Inauguration of the line, just before the start of the Tokyo 1964 Olympic Games, was greeted by widespread international acclaim, and the Shinkansen was quickly dubbed the “bullet train” for the great speed the trains obtained and for the aerodynamic bullet shape of their noses. Many innovations, such as the use of prestressed concrete ties and mile-long welded sections of track, were introduced in the line’s construction. A 100-mile (160-km) extension of that line westward from Ōsaka to Okayama was completed in 1972, and its final segment, a 244-mile (393-km) stretch between Okayama and the Hakata station in Fukuoka, northern Kyushu, opened in 1975.

Other lines radiating northward from Tokyo were completed in 1982 to the cities of Niigata (the Jōetsu line) and Morioka (the Tōhoku line), the Tōhoku line subsequently being extended northward to Hachinohe in 2002. Work to build a link to Aomori, northwest of Hachinohe, began in the late 1990s. When that segment opened in 2010, the Shinkansen was essentially complete for the entire length of Honshu. However, plans had long been in place to connect all three main Japanese islands by Shinkansen with a line northward into Hokkaido (via the Seikan Tunnel under Tsugaru Strait). Construction on the Hokkaido line began in 2005 on the segment between Aomori and Hakodate in southern Hokkaido, the ultimate goal being to extend the line to Sapporo. The line between Aomori and Hakodate opened in 2016. Construction on the section from Hakodate to Sapporo was begun in 2012 and expected to be completed in 2031.

Branches from the Tōhoku line to Yamagata opened in 1992 (extended north to Shinjo in 1999) and to Akita in 1997; a branch from the Jōetsu line to Nagano also opened in 1997. Segments of a further extension of the Nagano branch westward to Toyama and Kanazawa opened in 2015. In addition, a line was completed between Yatsushiro and Kagoshima in southwestern Kyushu in 2004. In the late 1990s work commenced to extend that line northward from Yatsushiro to Hakata, and the opening of the segment in 2011 completed the full north-south route of the Shinkansen on Kyushu. Work began in 2008 on a branch from the Kyushu line southwestward to Nagasaki, and it opened in 2022.

Much of the system’s track runs through tunnels, including one under Shimonoseki Strait between Honshu and Kyushu, another on the Tokyo-Niigata line that is 14 miles (23 km) long, and another near Aomori with a record length (for a double-tracked inland tunnel) of 16.5 miles (26.5 km) when the bore was finished in 2005. Several hundred trains operate daily on the Shinkansen system. The most-frequent service is between Tokyo and Ōsaka, especially during the morning and evening rush hours, when trains depart at intervals of 10 minutes or less. The fastest trains can make the trip from Tokyo to Hakata in about five hours, and the quickest from Tokyo to Aomori take about three hours.

The electric multiple-unit trains, which can seat 1,000 passengers or more, derive their power from an overhead wire system. Trains originally reached top speeds of 130 miles (210 km) per hour, but improvements in track, train cars, and other components have made possible maximum speeds of between 150 and 185 miles (240 and 300 km) per hour. In early 2013 some trains began operating at up to 200 miles (320 km) per hour. Such high speeds made it necessary to develop elaborate safety features. Each car, for example, is equipped with brakes consisting of cast-iron discs and metallic pad linings specially designed not to distort under emergency braking. Moreover, all movements of the trains are monitored and controlled by a central computerized facility in Tokyo.

Additional Information

Japan's main islands of Honshu, Kyushu and Hokkaido are served by a network of high speed train lines that connect Tokyo with most of the country's major cities. Japan's high speed trains (bullet trains) are called shinkansen and are operated by Japan Railways (JR).

Running at speeds of up to 320 km/h, the shinkansen is known for punctuality (most trains depart on time to the second), comfort (relatively silent cars with spacious, always forward-facing seats), safety (no fatal accidents in its history) and efficiency. Thanks to various rail passes, the shinkansen can also be a cost-effective means of travel.

Shinkansen network

The shinkansen network consists of multiple lines, among which the Tokaido Shinkansen (Tokyo - Nagoya - Kyoto - Osaka) is the oldest and most popular. All shinkansen lines (except the Akita and Yamagata Shinkansen) run on tracks that are exclusively built for and used by shinkansen trains. Most lines are served by multiple train categories, ranging from the fastest category that stops only at major stations to the slowest category that stops at every station.

---
